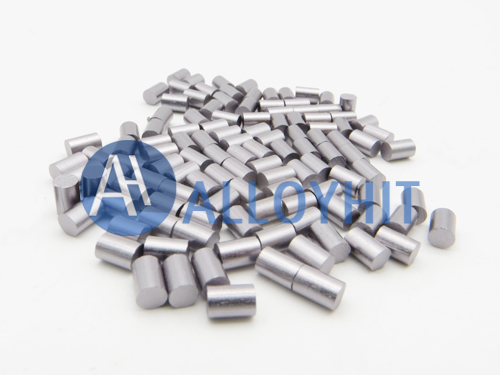

High Purity Vanadium Particles
Vanadium particles represent a specialized form of this remarkable metal, combining vanadium's inherent properties with the unique advantages of particulate form—large surface area, precise reactivity, and versatile processing capabilities.
What Makes Vanadium Particles Unique?
When processed into fine particles, vanadium's unique properties create a material that offers exceptional reactivity while maintaining the metal's inherent strength characteristics:
High surface area to volume ratio for enhanced reactivity
Uniform particle size distribution for consistent performance
Excellent sintering properties for advanced manufacturing
Controlled oxygen content for predictable reactivity
Exceptional purity for critical applications
From Ore to Precision Vanadium Particles
Pecifications of Vanadium Particles
Our high purity vanadium particles are manufactured to precise specifications, with custom particle size distributions available to meet your exact requirements.
| Standard Particle Sizes | |||
| Grade | Particle Size Range | Typical Median (D50) | Production Method |
| VP-1 | 1-5 μm | 3 μm | Jet Milling |
| VP-5 | 5-20 μm | 10 μm | Jet Milling |
| VP-20 | 20-75 μm | 45 μm | Attritor Milling |
| VP-100 | 75-150 μm | 100 μm | Milling + Classification |
| VP-500 | 150-500 μm | 300 μm | Crushing + Sieving |
| VP-1000 | 500 μm-1 mm | 750 μm | Crushing + Sieving |
Custom particle size distributions are available upon request. We can provide particles with specific D10, D50, and D90 values to meet your application requirements.
Purity Levels & Grades
99.95% (3N5)
Most PopularHigh purity grade suitable for most industrial applications requiring excellent mechanical properties and consistent performance.
Maximum Impurities (ppm)
- Oxygen: 300 max
- Nitrogen: 200 max
- Carbon: 150 max
- Iron: 100 max
- Silicon:50 max
- Other elements:10 each max
Particle Morphology
Spherical
Gas atomized particles with low aspect ratio, excellent flow properties, ideal for additive manufacturing.
Irregular/Angular
Milled particles with higher surface area and good sintering properties for powder metallurgy.
Manufacturing Process of Vanadium WireManufacturing Process of Vanadium Particle
Our specialized manufacturing process ensures the highest quality vanadium particles with precise size distribution and exceptional purity.
1. High Purity Vanadium Production
Vanadium metal of specified purity is produced using advanced reduction processes, ensuring minimal impurities and consistent quality.
2. Ingot Preparation
Pure vanadium ingots are carefully prepared, including surface treatment to remove any contaminants before particle production.
3. Particle Formation
Depending on desired particle characteristics, either gas atomization (for spherical particles) or mechanical milling (for irregular particles) is employed.
4. Classification & Sizing
Particles are precisely classified using advanced air classification or sieving techniques to achieve the desired size distribution.
5. Purification & Treatment
Particles undergo additional purification steps to reduce oxygen and other gas contents, with optional surface treatments as required.
6. Quality Control & Packaging
Rigorous quality control testing ensures specifications are met, followed by packaging under inert atmosphere to prevent oxidation.
Quality Control & Testing of Vanadium Parcel
Chemical Analysis
Glow Discharge Mass Spectrometry (GDMS) and OES verify purity levels and chemical composition.
Particle Size Analysis
Laser diffraction and image analysis ensure precise particle size distribution.
Morphology Analysis
Scanning Electron Microscopy (SEM) evaluates particle shape and surface characteristics.
Physical Property Testing
Tap density, flow rate, and specific surface area measurements ensure consistent performance.
Contact Us
If you have any questions or needs regarding pure Vanadium Particles products, please feel free to contact us and we will provide you with professional consulting services.
