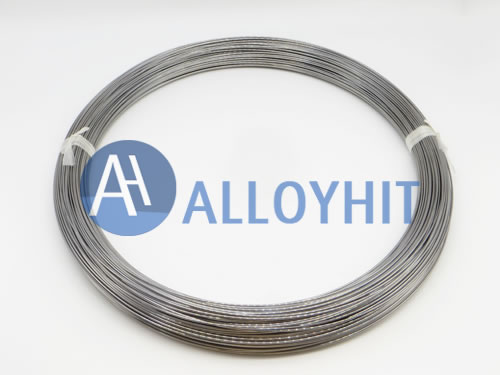

High Purity Vanadium Wire
Vanadium wire represents a specialized form of this remarkable metal, combining the inherent properties of vanadium with the versatility and precision of wire form. Our high purity vanadium wire is engineered for exceptional performance.
What Makes Vanadium Wire Unique?
When drawn into fine wire, vanadium's unique properties create a material that is both strong and flexible—rare characteristics in high-performance metals:
Exceptional strength-to-weight ratio with surprising flexibility
Maintains structural integrity at extreme temperatures
Excellent corrosion resistance in various environments
Low neutron absorption, ideal for nuclear applications
Good electrical conductivity with high-temperature stability
From Ore to Precision Vanadium Wire
Specifications of Vanadium Wire
Our high purity vanadium wire is manufactured to precise specifications, with custom options available to meet your exact requirements.
| Standard Dimensions | ||
| Wire Diameter | Tolerance | Max Continuous Length |
| 0.5mm - 1.0mm | ±0.005mm | 750m |
| 1.0mm - 3.0mm | ±0.01mm | 1000m |
| 3.0mm - 10.0mm | ±0.02mm | 500m |
Custom diameters and lengths beyond standard ranges are available upon request. We can provide cut-to-length services, spooling, or straight lengths according to your specifications.
Purity Levels & Grades
99.95% (3N5)
Most PopularHigh purity grade suitable for most industrial applications requiring excellent mechanical properties and consistent performance.
Maximum Impurities (ppm)
- Oxygen: 300 max
- Nitrogen: 200 max
- Carbon: 150 max
- Iron: 100 max
Manufacturing Process of Vanadium Wire
Our specialized manufacturing process ensures the highest quality vanadium wire with precise dimensions and exceptional purity.
1. High Purity Vanadium Production
Vanadium metal of specified purity is produced using advanced reduction processes, ensuring minimal impurities and consistent quality.
2. Ingot Casting & Preparation
Pure vanadium is melted under vacuum or inert atmosphere and cast into ingots, which are then processed into rod stock for wire drawing.
3. Initial Rod Reduction
Vanadium ingots are hot worked and rolled into rods of appropriate diameter for the initial wire drawing stages.
4. Multi-stage Drawing Process
Rods are drawn through a series of diamond dies with decreasing aperture sizes, gradually reducing the diameter to the desired wire gauge.
5. Intermediate Annealing
Controlled annealing in vacuum or inert atmosphere relieves work hardening between drawing stages, maintaining ductility.
6. Final Heat Treatment & Finishing
Final annealing to achieve desired mechanical properties, followed by cleaning, surface treatment, and spooling or cutting to length.
Quality Control & Testing of Vanadium Wire
Dimensional Inspection
Laser micrometers and optical comparators ensure precise diameter control across wire length.
Chemical Analysis
Glow Discharge Mass Spectrometry (GDMS) and Optical Emission Spectroscopy (OES) verify purity levels.
Mechanical Testing
Tensile testing, elongation measurement, and hardness testing verify mechanical properties.
Surface Quality
Optical inspection and surface roughness measurement ensure superior surface finish.
Contact Us
If you have any questions or needs regarding pure Vanadium Wire products, please feel free to contact us and we will provide you with professional consulting services.
